Brand
- MFR #G85-400A
- Zoro #G7464301
- UPC #203523973206
- Country of OriginUnited States
- Category
Dimensions
| Jacket Dia. | 26 1/4 in |
| Height to Top of Heater | 72 5/16 in |
| Draft Hood Size | 10 in |
| Top Water Connection Size | 1 1/2 in |
| Height to Cold Side Connection | 30 5/8 in |
| Side Water Connection Size | 1 1/2 in |
| Manufacturers Warranty Length | Limited 3 yr Tank and 1 yr Parts |
| Height to Gas Connection | 7 in |
| Height to Top of Vent Connection | 78-13/16″ |
| Overall Height – Water Heaters | 78 13/16 in |
| Height to Hot Side Connection | 66 3/8 in |
| Height to T and P Valve | 66.37 in |
| Overall Dimensions – Ht. x Dia. | 78.81 in x 26.25 in |
| Hot Outlet Size | 1 1/2 in |
| Tank Height | 72.31 in |
| Overall Height | 78.81 in |
| Height to Hot Outlet | 66.37 in |
| Height to Gas Inlet | 7 in |
| Manufacturer Warranty Length | 3 yr Limited Tank |
| Vent Connection Size | 10 in |
| Gas Inlet Size | 3/4 in |
| Tank Diameter | 26.25 in |
| Height to Cold Inlet | 30.62 in |
Details
| Tank Capacity | 85 gal. |
Description

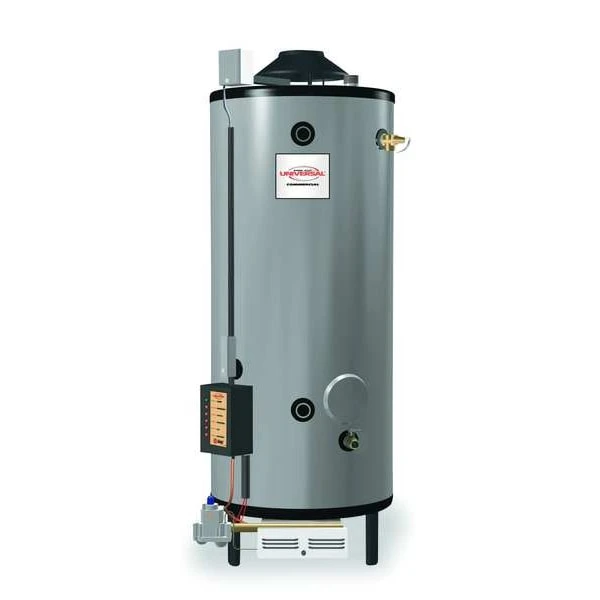

Commercial Gas Water Heater, Fuel Type Natural Gas, Low NOx No, First Hour Rating 447 gal, Gas Inlet Size 3/4 in, Maximum Heating Capacity 399,900 BTU/ft/sq ft/hr/ Degrees F, Overall Height 78.81 in, Tank Diameter 26.25 in, Included Valves Temperature and Pressure Relief, Tank Capacity 85 gal, Hot Outlet Size 1 1/2 in, Maximum Recovery Flow Rate 969 gph @ 40 Degrees F, Market Commercial, Vent Type Standard
