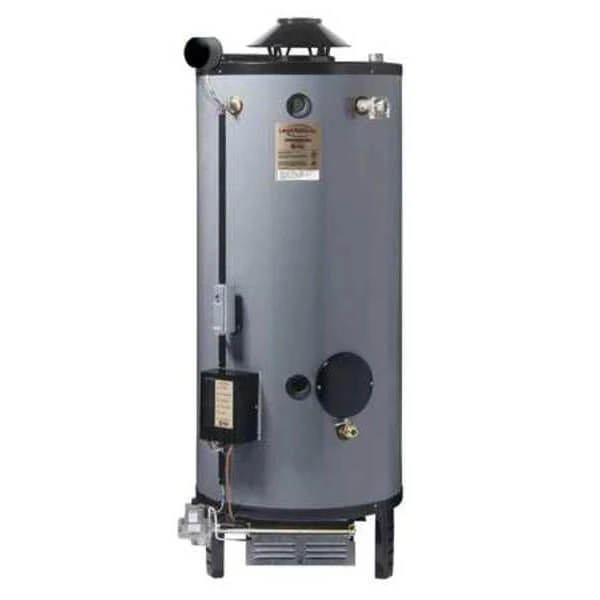

Natural And LP Gas Commercial Gas Water Heater, 72 Gal., 120V AC

Original price was: $358.00.Current price is: $99.99.

Key Features

Tank Capacity 72 gal.
Fuel Type Natural Gas
BtuH 300,000
Voltage 120V AC
Temp. Range Upto 180 Degrees F

SKU: G4372742 Categories: Gas Water Heaters, Water Heaters

Top-Notch Quality
The quality solution for all your needs.
Free Shipping Worldwide
Your Security is Our Promise

Description
Reviews (0)

Brand
MFR #

G72-300A
Zoro #

G4372742
UPC #

203524468510
Country of Origin

United States
Category

Dimensions

Jacket Dia.	26 1/4 in
Height to Top of Heater	64 1/8 in
Draft Hood Size	8 in
Height to Top of Vent Connection	71″
Height to Cold Side Connection	25 in
Manufacturers Warranty Length	Limited 3 yr Tank and 1 yr Parts
Overall Height – Water Heaters	71 in
Height to Hot Side Connection	58 5/8 in
Top Water Connection Size	1 1/2 in
Side Water Connection Size	1 1/2 in
Height to Gas Connection	7 in
Overall Width	71 in
Overall Height	71 in
Manufacturer Warranty Length	3 yr Limited
Gas Inlet Size	3/4 in
Height to T and P Valve	58.62 in
Height to Cold Inlet	25 in
Tank Height	64.5 in
Vent Connection Size	8 in
Height to Gas Inlet	7 in
Overall Depth	26.25 in
Tank Diameter	26.25 in
Height to Hot Outlet	58.62 in
Hot Outlet Size	1 1/2 in
Overall Dimensions – Ht. x Dia.	71 in x 26.25 in

Details

Tank Capacity	72 gal.
Fuel Type	Natural Gas
BtuH	300,000
Voltage	120V AC
Temp. Range	Upto 180 Degrees F
Low Nox Burner	No
Vent Type	Standard
Gas Connection	3/4 in
Recovery @ 140 F Rise	208 gph
Tank Capacity – Plumbing	72.0 gal
Recovery @ 100 F Rise	291 gph
Max. Pressure	160 psi
Recovery @ 70 F Rise	416 gph
Recovery @ 120 F Rise	242 gph
BtuH – Water Heaters	300,000
Top Nipple Spacing	20 in
Fuel Type – Water Heaters	Natural Gas
First Hour Recovery	341 gph
Recovery @ 130 F Rise	224 gph
Ignition Type	Direct Spark to Pilot
Residential / Commercial	Commercial
Recovery @ 50 F Rise	582 gph
Recovery @ 110 F Rise	264 gph
Features	Top/Front/Side Water Connections, Short Heights/Small Diameters for Installation Flexibility, Low Profile Automatic Damper, System Sentinel Led Diagnostic System
Item	Commercial Gas Water Heater
Includes	Automatic Flue Damper, Full Port/Full Flow Drain Valve, Led Diagnostic System, Lonox Burner, T and P Valve
First Hour Recovery – Water Heaters	341 gph
Standards	ANSI, ANSI Z21.10.3, ASHRAE, ASHRAE Standard (Epact), ASME, CEC, CSA, NC Compliant
Recovery @ 90 F Rise	323.0 gph
Commercial / Residential	Commercial
Item – Water Heaters	Gas Water Heater
Green Certification or Other Recognition	California Energy Commission (CEC) Certified
Nominal Tank Capacity	70 gal
Vent Configuration	Standard Atmospheric
Included Valves	Drain, Temperature and Pressure Relief
First Hour Rating	341 gal
Maximum Heating Capacity	300,000 BTU/ft/sq ft/hr/ Degrees F
Maximum Recovery Flow Rate	727 gph @ 40 Degrees F
Market	Commercial
Included Valve Type	Drain, T & P Relief
Recovery Rate @ Rise	208 gph @ 140 Degrees F, 224 gph @ 130 Degrees F, 242 gph @ 120 Degrees F, 264 gph @ 110 Degrees F, 291 gph @ 100 Degrees F, 323 gph @ 90 Degrees F, 364 gph @ 80 Degrees F, 416 gph @ 70 Degrees F, 485 gph @ 60 Degrees F, 582 gph @ 50 Degrees F
Tank Insulation Material	Fiberglass
Low NOx Compliant	Includes California Low NOx Compliant Burner
Thermal Efficiency	80 %
Low NOx	Yes
Minimum Delivered Temperature	0 Degrees F
Maximum Delivered Temperature	180 Degrees F
Water Connection Location	Front, Rear, Top
Maximum Water Pressure	160 psi
Operating Voltage	120V AC

Description

Commercial Gas Water Heater, Fuel Type Natural Gas, Low NOx Yes, First Hour Rating 341 gal, Gas Inlet Size 3/4 in, Maximum Heating Capacity 300,000 BTU/ft/sq ft/hr/ Degrees F, Overall Height 71 in, Tank Diameter 26.25 in, Included Valves Drain, Temperature and Pressure Relief, Tank Capacity 72 gal, Hot Outlet Size 1 1/2 in, Maximum Recovery Flow Rate 727 gph @ 40 Degrees F, Market Commercial, Vent Type Standard
